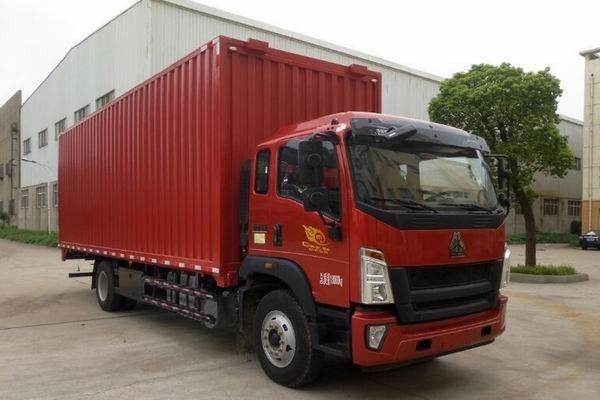

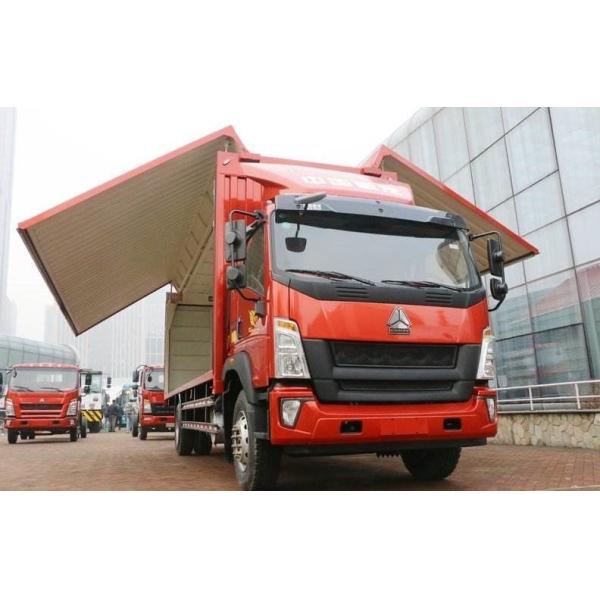

2012 Year 4×2 Drive Mode EURO V Emission Standard SINOTUK-HOWO Van Body Used Cargo Truck
| SPECIFICATION |
| SINOTUK-HOWO Cargo Truck ZZ5187XYKG561DE1 |
| Drive mode | 4×2 |
| Engine | Model | HOWO MC05.21-50 |
| Type | 6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR |
| Max. power(Kw/rpm) | 151/2400 |
| Max. torque(N.m/rpm) | 830/1400 |
| Cylinder bore ×Stroke(mm) | 102×120 |
| Emission standard | EURO V |
| Displacement(ml) | 4580 |
| Type of fuel | Diesel |
| Compression ratio | (17.5±0.5):1 |
| Cab | D530 | one and a half rows |
| Capacity | 3 persons |
| Gearbox | Type | HW90510C |
| Max. torque(N.m) | 750 |
| Clutch | Φ395mm | push-type diaphragm spring clutch |
| Frame H×W× T(mm) | 250×80×(7+4) |
| Axles | Front axle(Kg) | 6500 |
| Rear axle(Kg) | 11500 |
| No. of spring leaves | 7/9+6 |
| Tyre | Size | 10.00R20,295/80R22.5 |
| cago box | form | Van body |
| Air conditioner | A/C |
| Dimensions | Overall dimension(mm) | 10430×2550×3980 |
| cargo box dimension(mm) | 8150×2470×2600 |
| Wheel base(mm) | 5600 |
| Front/Rear suspension(mm) | 1330/3500 |
| Front/Rear tread(mm) | 1980/1860 |
| App./Dep. angel (°) | 19°/8° |
| Performance | Max. speed(Km/h) | 95 |
| Max. gradeability(%) | 30 |
| Min. turning diameter(m) | 17 |
| Mass | Payload(Kg) | 9,990 |
| Curb weight(Kg) | 7,880 |
| G.V.W(Kg) | 18,000 |
We have a wide range of quality used trucks in our stock. One of the benefits of purchasing an used cargo truck from us is the vehicle support provided to you in the event of any issue.
All used cargo trucks for sale undergo rigid testing for any problems and comprehensive repairs are undertaken before the truck is listed for sale and we use only genuine original factory spare parts.
Regular Trade Terms
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Payment terms: T/T before shipment.
Delivery time: normally 7-15 working days after full payment received.
Used Vehicles we can provide
Used Buses like yutong bus,coaster bus, coach bus,tour bus,mini bus,school bus etc.
Used trucks like dump trucks, sinotruck, cargo truck, tank truck, tractor trucks, crane truck, concrete mixer trucks and other special purpose trucks, etc.
also we have sources of used SUVs and pickup cars and Sourcing used vehicles based on your demands service is available.
